Installing LED Tail Lamp Boards, late TD and TF

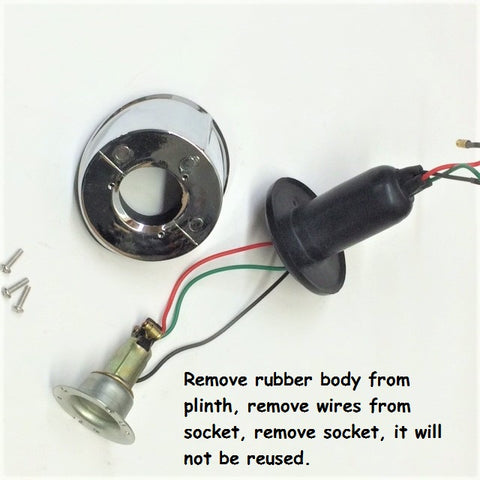

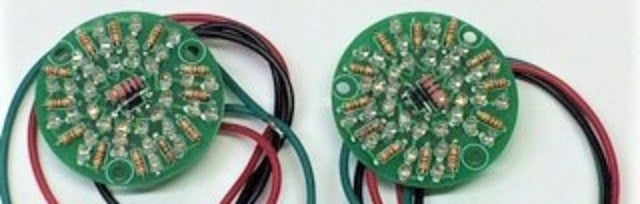

The LED board for the late TD and TF tail lamp is installed in place of the original metal socket, directly to the chrome plinth through the rubber body. Refer to the wiring instructions included with the LED set for connection details. Here are a few photos to help with the installation.
